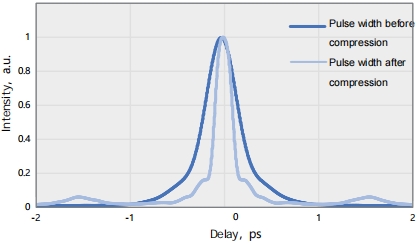

Compresses pulses to under 50 fs, perfect for ultrafast laser use.
Can cascade with HCF systems for various applications.

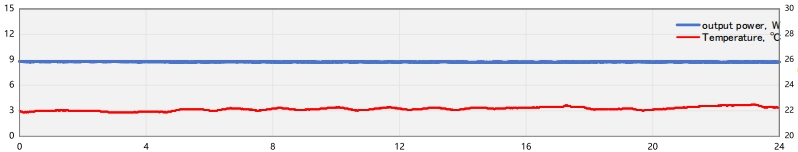

Operates stably 24/7 with RMS power fluctuations under 0.24% over 24 hours.
Compression efficiency >80%, maintaining high energy density.
Simple to operate with no complex adjustments, adaptable to different environments.
Ideal for micro-nano processing, precision manufacturing, and other high-end uses.

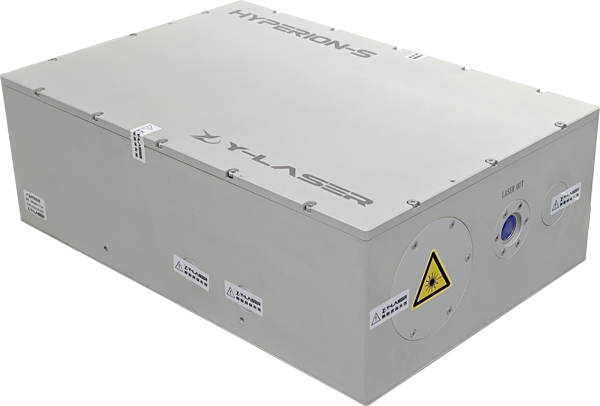

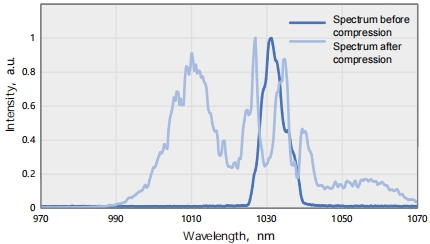

The HYPERION-S series is a pulse compressor based on nonlinear technology that compresses input laser pulses by spectral broadening. The HYPERION-S features an advanced cavity design using high-quality femtosecond optics to ensure minimal transmission loss. It includes an automated monitoring system that continuously tracks the beam quality, ensuring consistent output. Additionally, the compressor is highly durable, interference-resistant, and supports 5-10x pulse compression, making it ideal for high-energy Yb ultrafast laser pulse compression. It offers long-term stability and meets the needs of demanding applications.
| Parameter | HYPERION-S |
| Incident pulse width | 150fs-1ps |
| Incident pulse energy | 5-20μJ |
| Incident laser central wavelength | 1030±10nm |
| Maximum compatible power | 80W |
| Typical compression ratio | 5-10 |
| Compressor efficiency | >80% |
| Typical output pulse width | <50fs |
| Compatibility | Can be cascaded with HCF system to output few-cycle pulses |

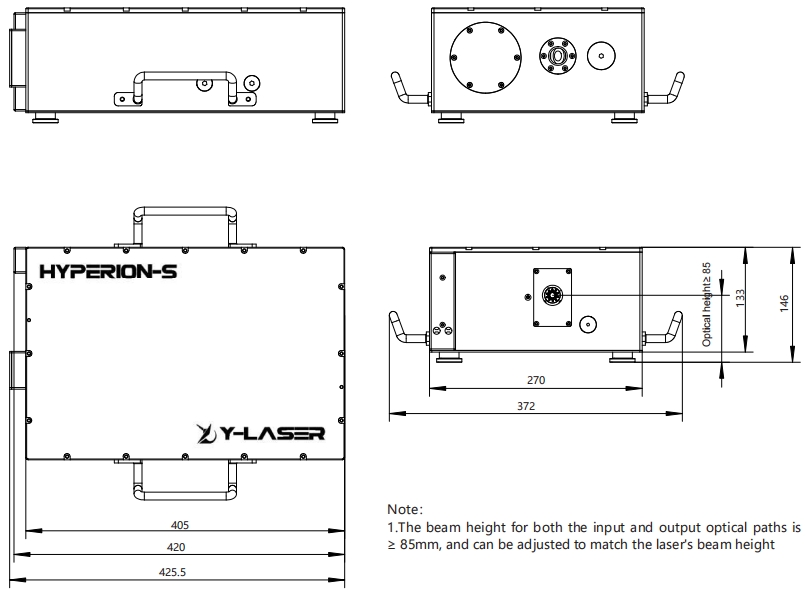

| Dimensions (L×W×H) | 425.5 x 270 x 146 mm |
| Weight (kg) | 18.3kg |
| Power supply requirements | Water-cooled machine：220V/0.6-5.6A/10.2kW（CWUP-10AI） |
