Y-LASER Successfully Delivered HELIOS Laser
In ultrafast laser technology, optical parametric chirped-pulse amplification (OPCPA) systems serve as a powerful gain mechanism, playing an important role in the generation of high-precision, broadband ultrafast pulses. An OPCPA system typically consists of two key components: the signal light source and the pump light source. As the core of the signal light source, the seed laser's stability, spectral characteristics, and pulse quality directly determine the overall performance of the OPCPA system. The seed laser must not only maintain precise temporal characteristics during pulse transmission but also work in perfect synchronization with the pump light source to ensure an efficient amplification process.
In the OPCPA system at the Attosecond Research Institute, the pump laser is required to deliver a high-energy, high-repetition-rate, and stable light source to ensure efficient gain and high-quality output from the OPCPA. To meet these stringent demands, we introduce the HELIOS laser as an ideal seed source for your OPCPA system, providing robust support for your ultrafast laser setup.

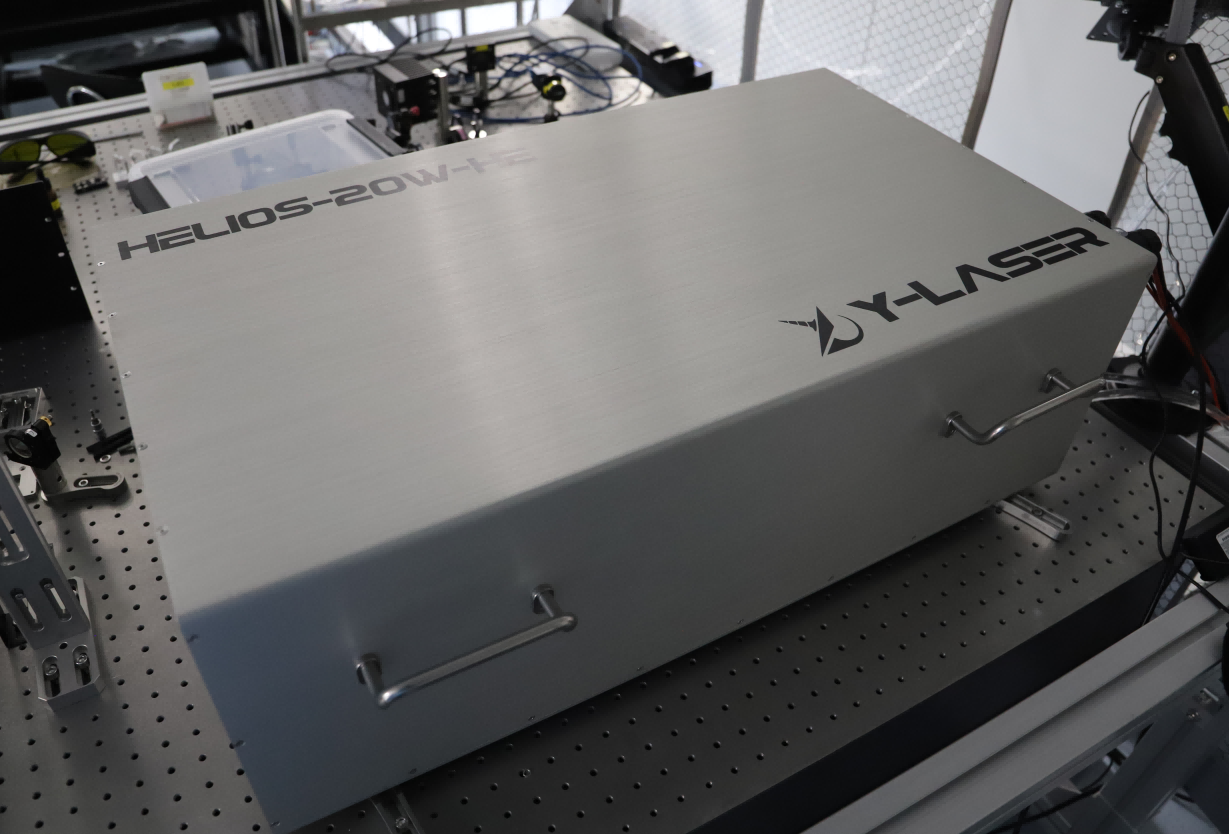

Y-LASER Successfully Delivered – HELIOS
Compatibility of HELIOS Laser with the Attosecond Research Institute's OPCPA System：
The efficient operation of an OPCPA system relies on the stability and energy output of the pump light source. The 2mJ high-energy pulses provided by the HELIOS laser perfectly match the requirements of the Attosecond Research Institute for a pump light source. The HELIOS laser not only meets the demands for high-power output but also ensures that beam quality is maintained without degradation, thereby avoiding unnecessary distortion during the amplification process and ultimately achieving high-quality output.
Features of the HELIOS Laser:
1、High Energy Output:
The HELIOS laser delivers pulse energy of up to 2 mJ, making it an ideal pump source for OPCPA systems and ensuring efficient amplification within the OPCPA system.
2、Excellent Beam Quality:
The HELIOS laser features an excellent TEM00 mode beam, ensuring high output beam quality that meets the stringent requirements of OPCPA systems.
3、Stable Pulse Width and Repetition Rate:
The HELIOS laser offers exceptionally stable pulse width and repetition rate, which are critical for a pump source to ensure the long-term stable operation of the OPCPA system.
4、Flexibility and Compatibility:
The HELIOS laser is designed with compatibility for various OPCPA systems in mind. It offers high adaptability, particularly in terms of adjustable pump energy and beam profile, meeting the Attosecond Research Institute’s requirements for system stability and flexibility.
The HELIOS series femtosecond laser features a maximum output power of 20W, a maximum single pulse energy of 2mJ (customizable up to 3mJ), and a minimum pulse duration of 190fs, with an adjustable pulse width ranging from 190fs to 10ps. Its high stability and precise output characteristics make this laser excel in the ultrafast laser field. Equipped with horizontal or vertical polarization at a center wavelength of 1030nm, the laser delivers a beam quality of M² < 1.2 and a beam diameter of 5±1mm, ensuring precise focusing and stable output. The system supports pulse selection with adjustable range from single-shot to 200kHz (customizable up to 1MHz), and achieves pulse energy stability of <1% RMS @8h and long-term power stability of <0.5% RMS @24h, making it ideal for high-precision experiments and industrial applications.
