HYPERION-G-HE
HYPERION Series
High-Energy MPC Pulse Compressor
Product Overview
The HYPERION-G-HE series is a high-performance nonlinear pulse compressor designed for high single-pulse energy applications. It compresses pulse duration using spectral broadening, improving time resolution and overall laser performance. Compatible with up to 2mJ single-pulse energy, especially for Yb laser systems, it offers precise pulse compression.
With high-quality femtosecond optics and an innovative cavity design, it ensures minimal loss and optimal efficiency. Its automatic monitoring system tracks pulse stability for reliable output. The HYPERION-G-HE is durable, interference-resistant, and suitable for both research and industrial applications, enhancing laser system performance for precision manufacturing and ultrafast optics.
Technical Specifications
Parameter | HYPERION-G-HE |
|---|---|
Incident pulse width | 150 fs-1 ps |
Incident pulse energy | 400 - 2000 μJ |
Incident laser central wavelength | 1036 ± 5 nm |
Maximum compatible power | 80 W |
Typical compression ratio | 5 - 10 |
Compressor efficiency | >90% |
Typical output pulse width | <35 fs |
Compatibility | Can be cascaded with HCF system to output few-cycle pulses |
Dimensions (L×W×H) | 958 x 416 x 222 mm |
Weight (kg) | 85 kg |
Remaining weight (kg) | 24 kg（Water-cooled machine） |
Power supply requirements | AC 220V/10A |
Power supply requirements for | 220V/0.6-5.6A/1.02kW（CWUP - 10AI） |
Note:
Customizations are available based on customer requirements for parameters such as wavelength range and pulse width. If you need more detailed information or have any questions about this MPC pulse compressor, please feel free to contact our technical support team.

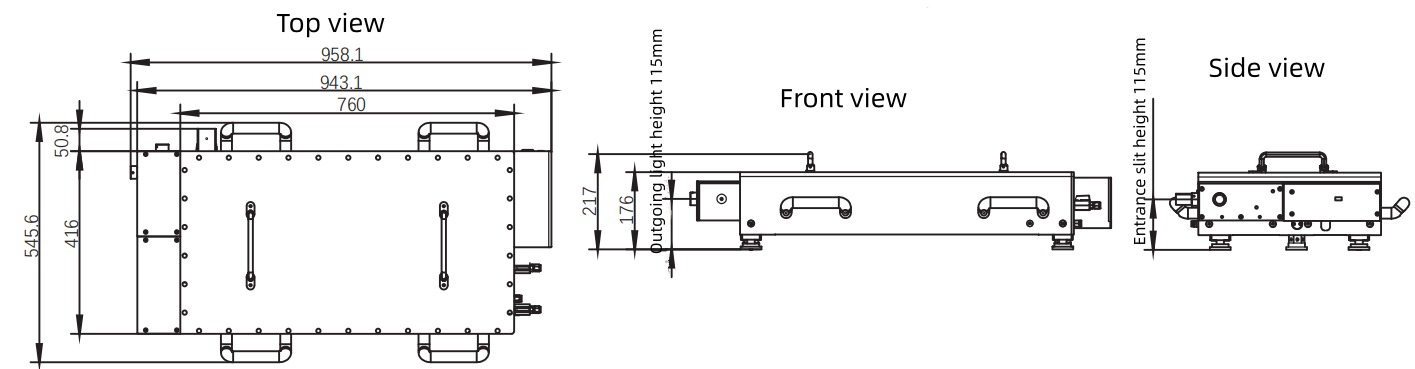

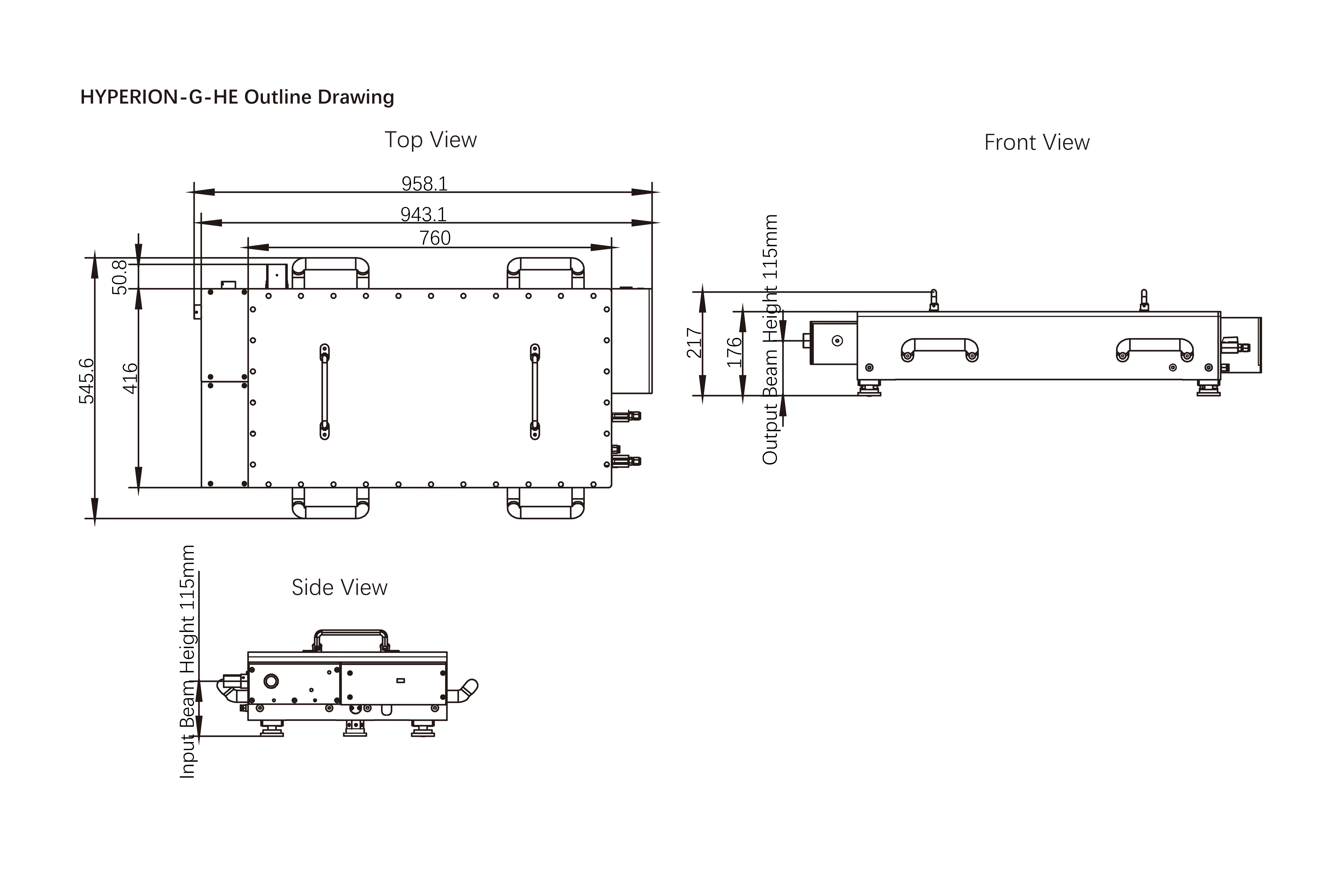

Technical Drawings

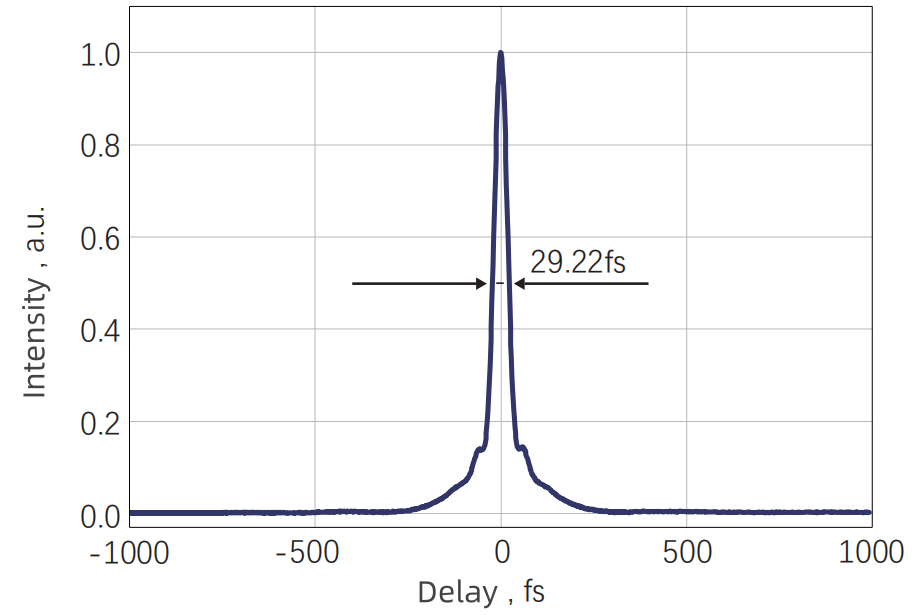

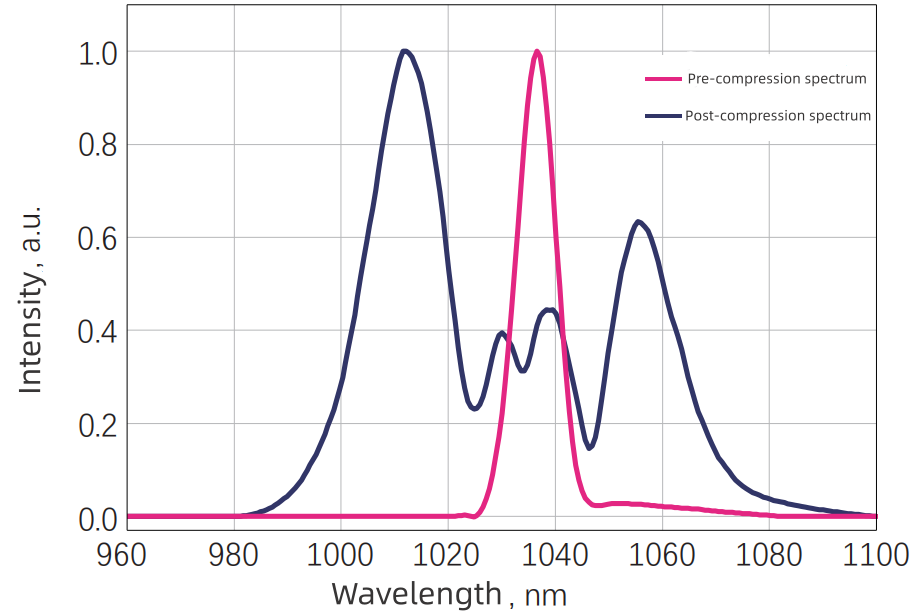

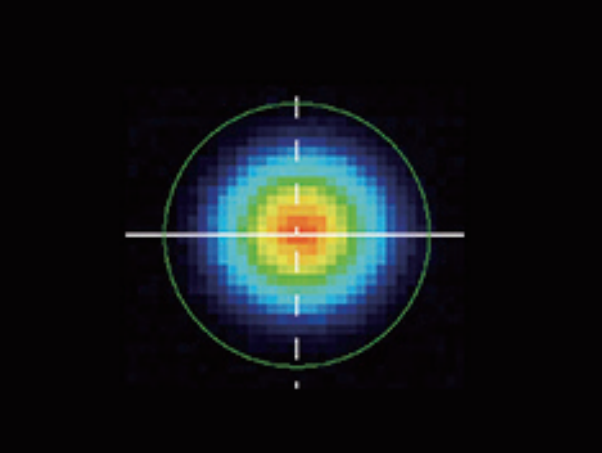

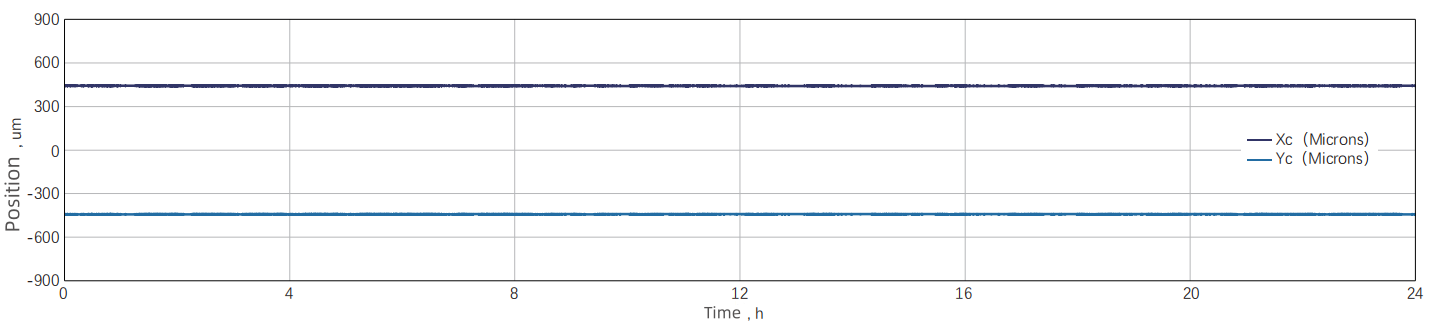

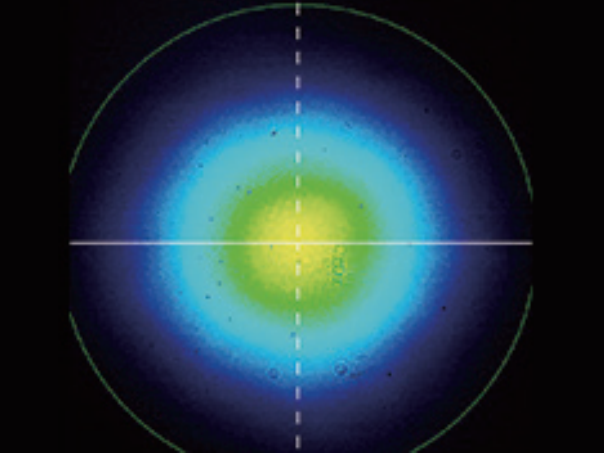

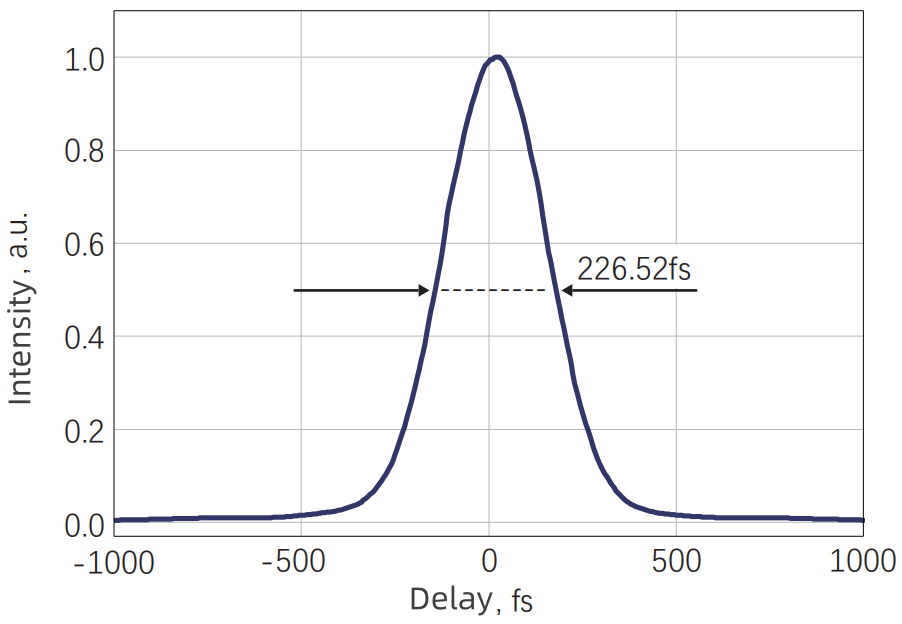

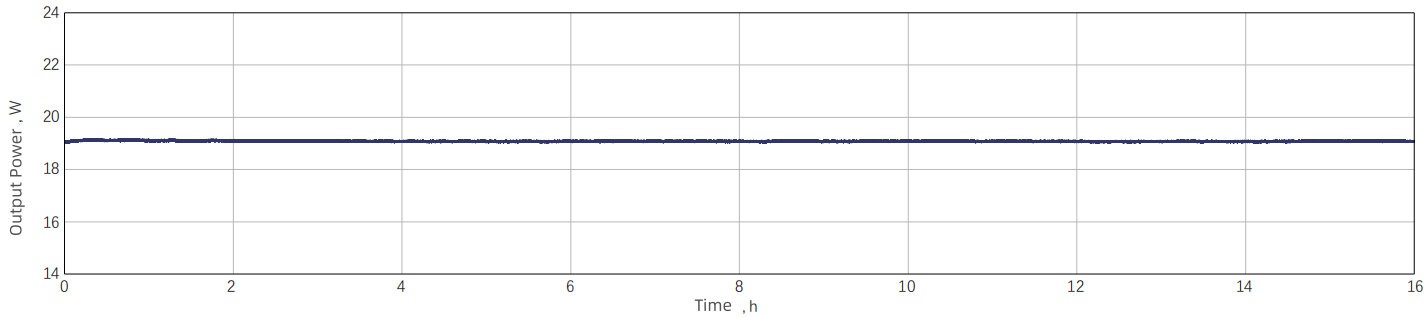

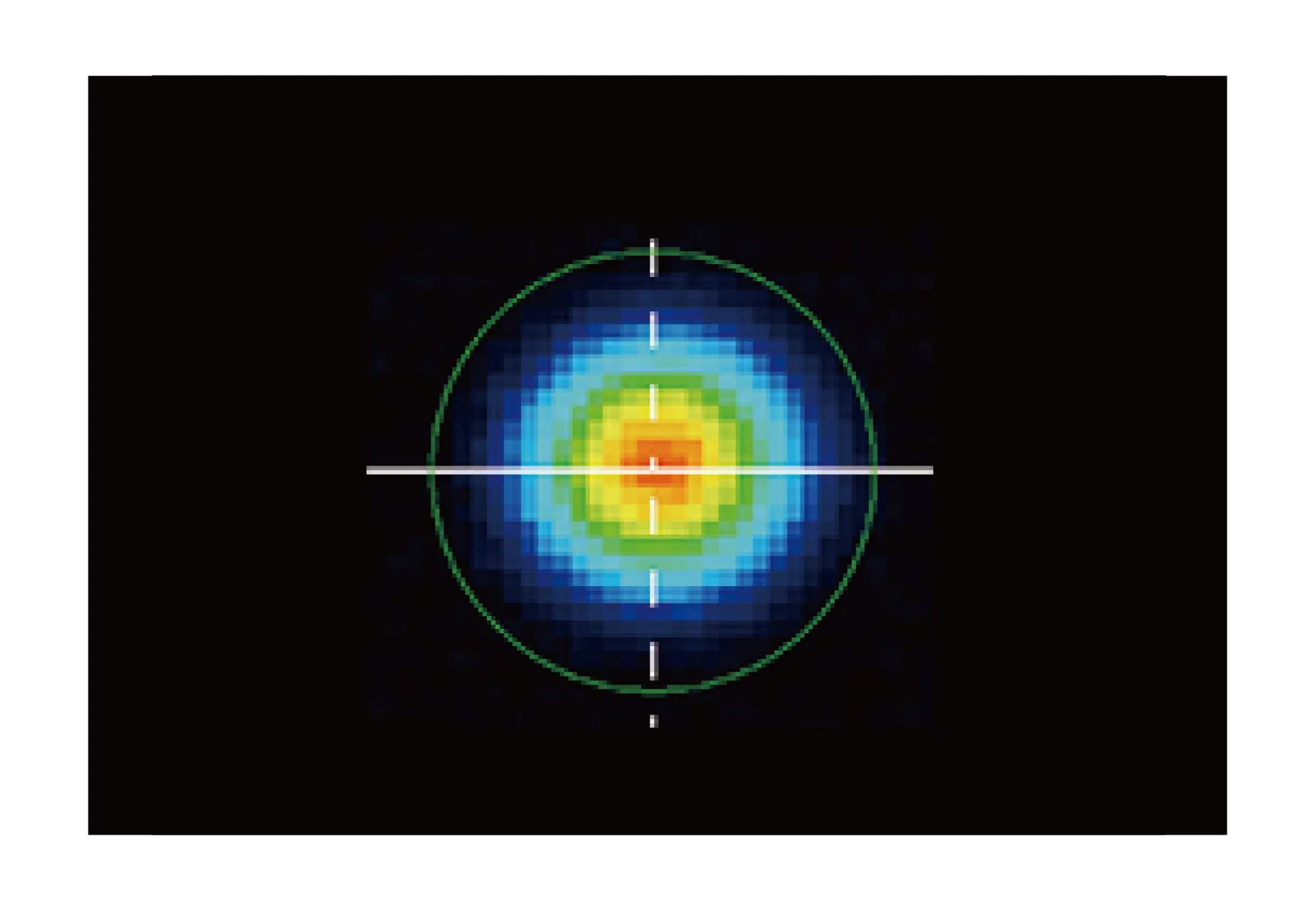

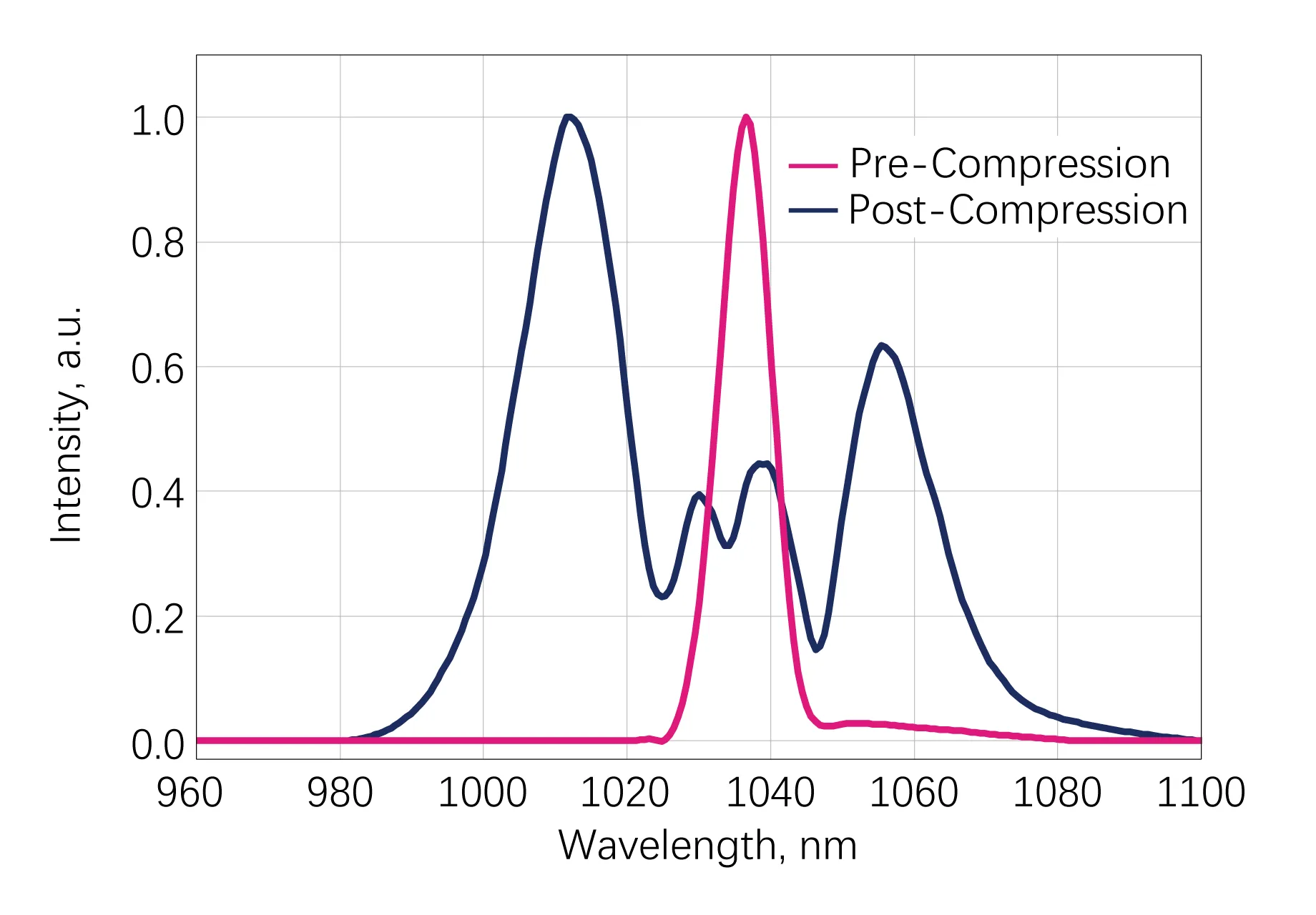

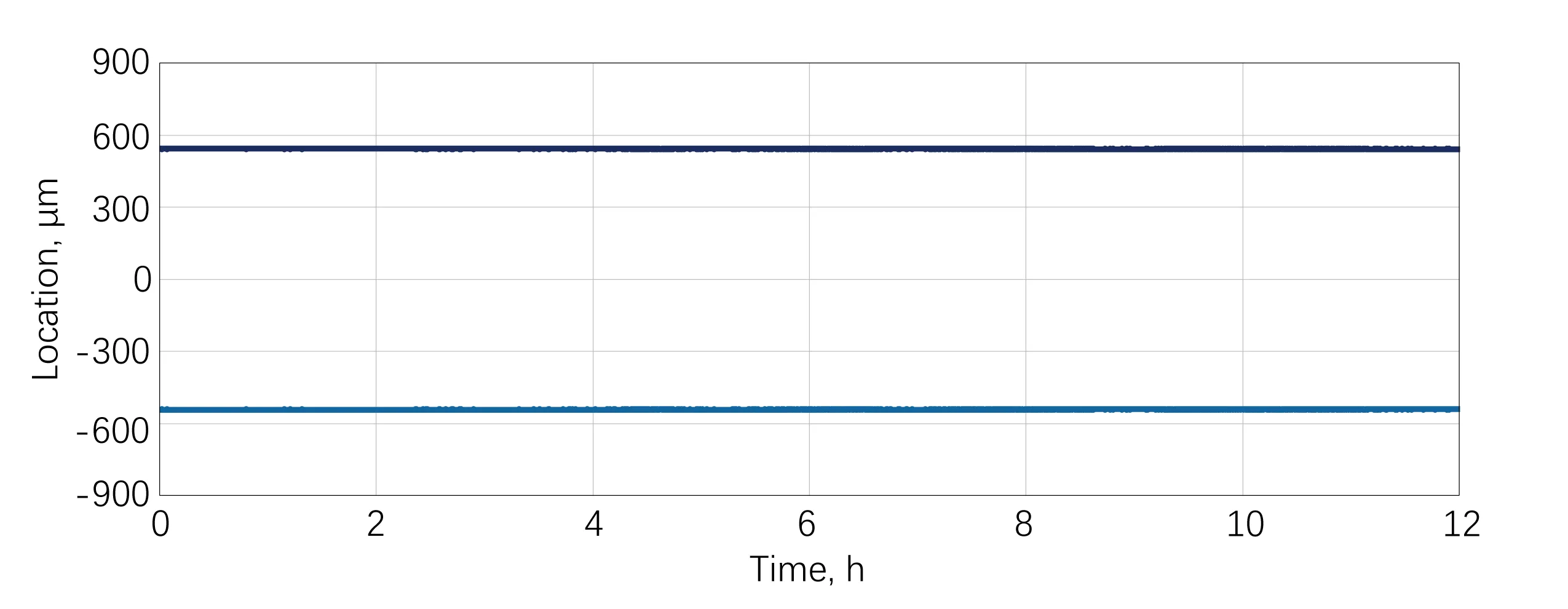

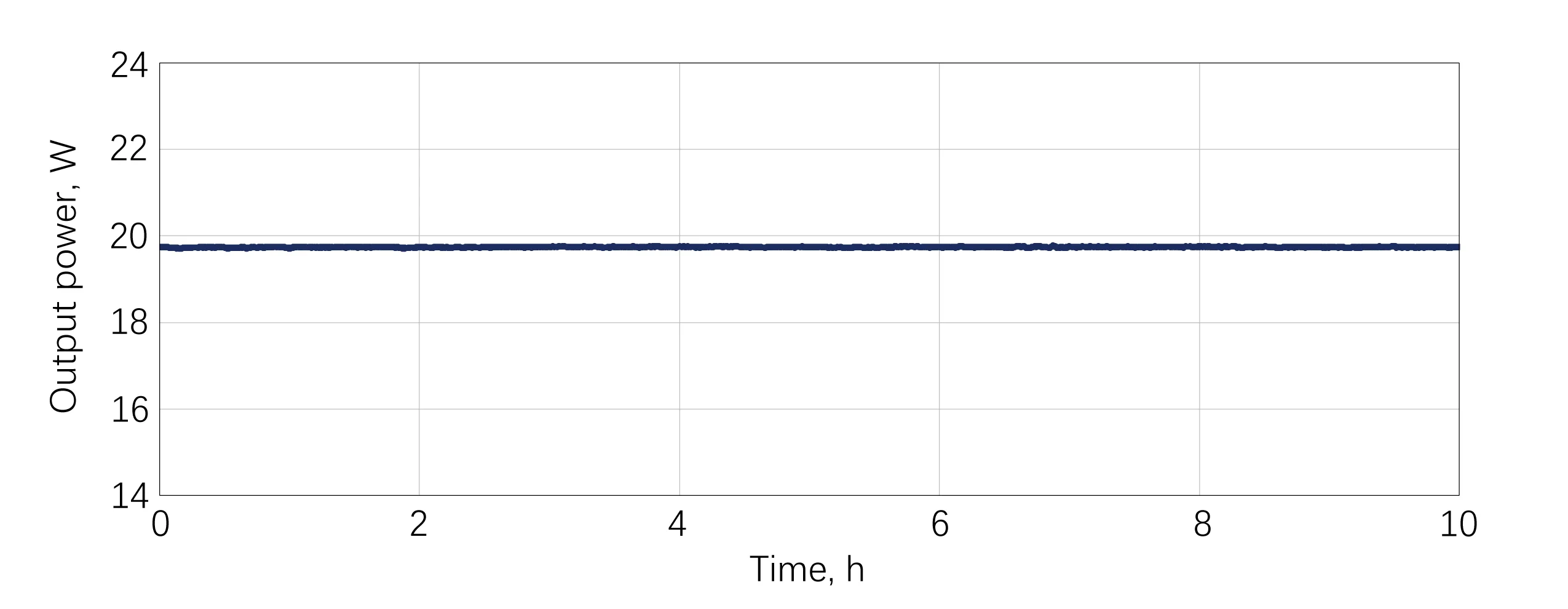

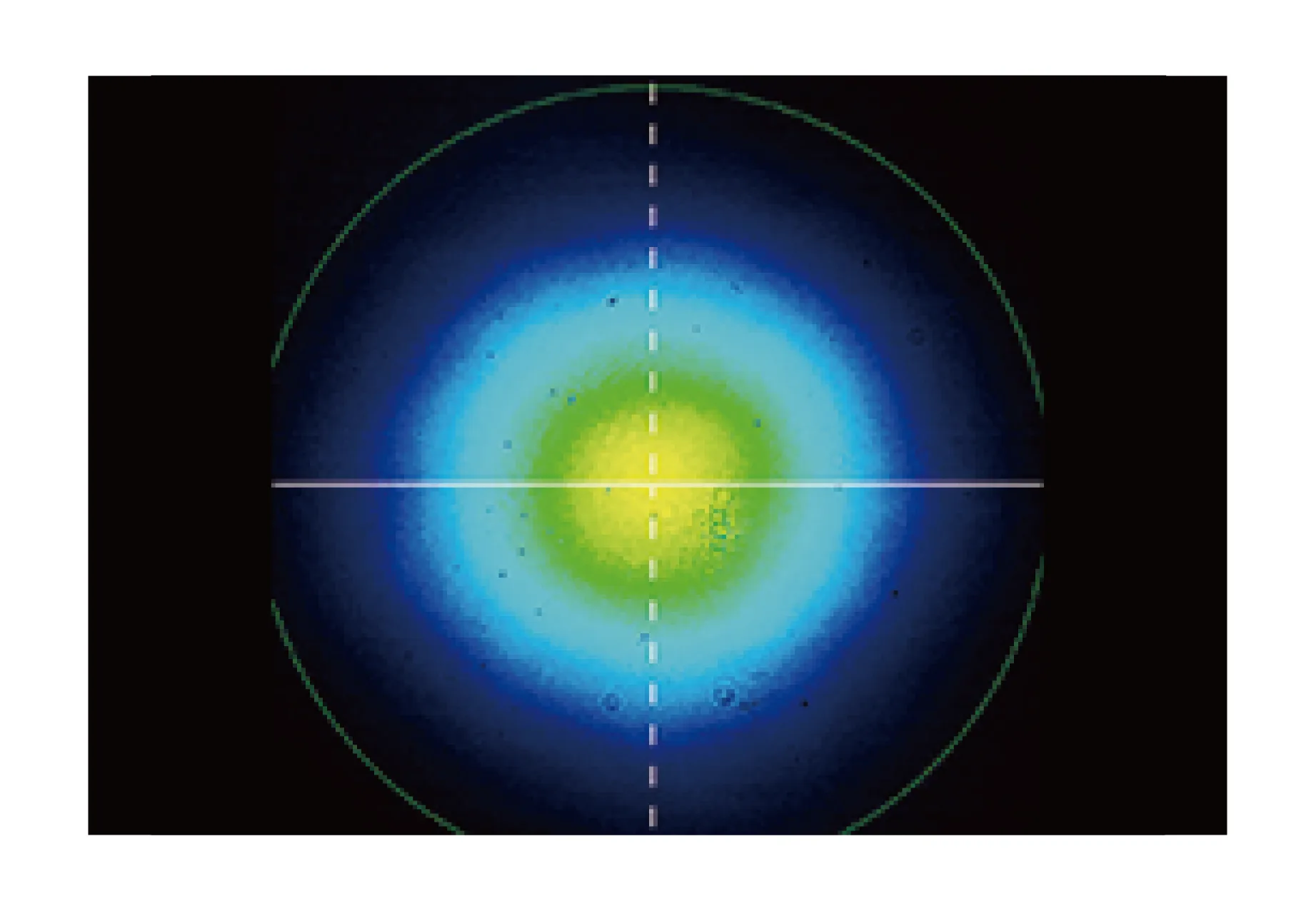

Performance Data
