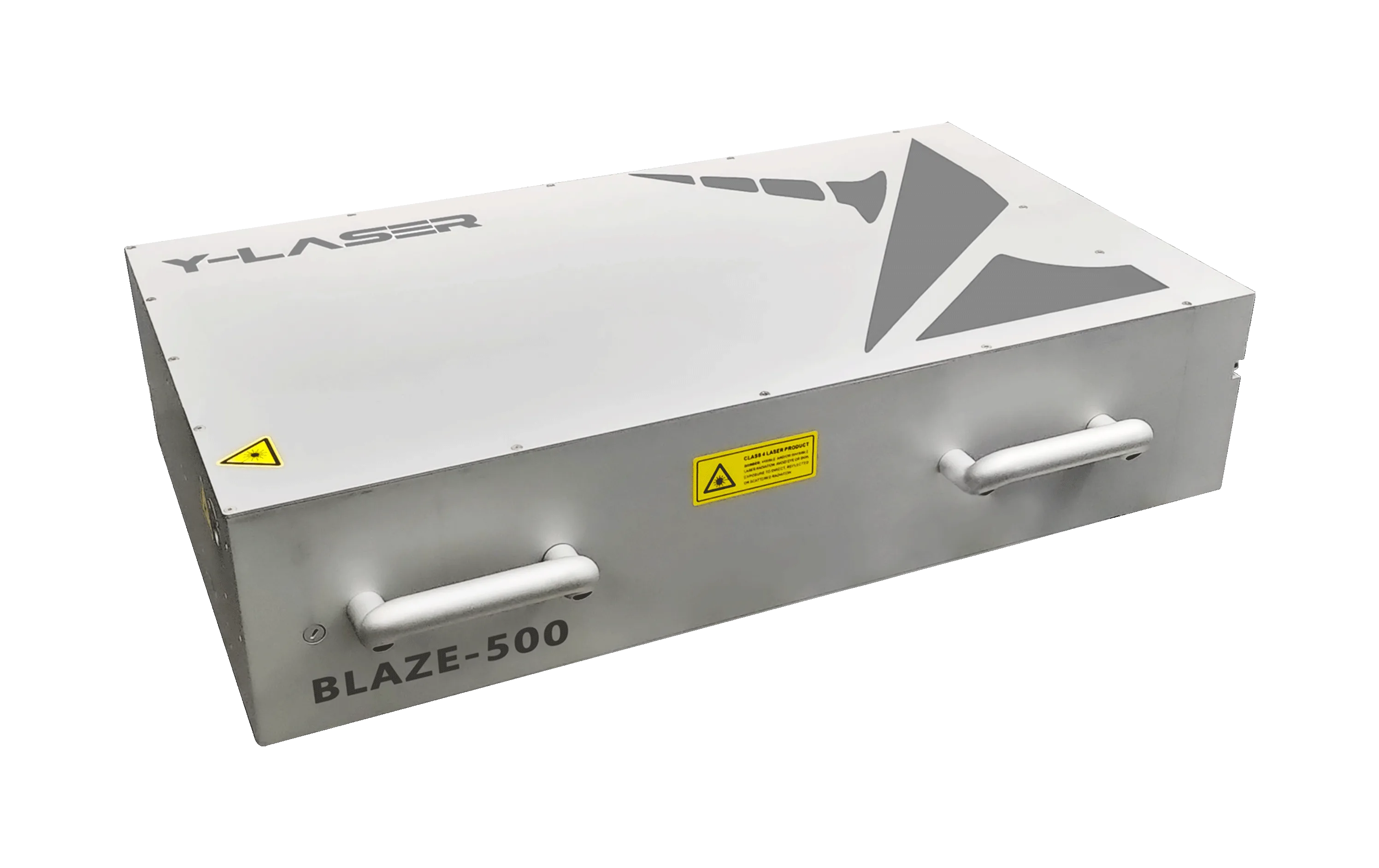

Blaze 500

The Blaze series high‑power picosecond lasers deliver exceptional performance, specifically designed to meet the demands of cutting‑edge scientific research and advanced industrial applications. Covering three key wavelengths — 1064 nm, 532 nm, and 355 nm — the series addresses a wide range of spectral requirements. With an average power of up to 500 W and a repetition rate of up to 6 MHz, it enables efficient processing and high‑speed scanning.

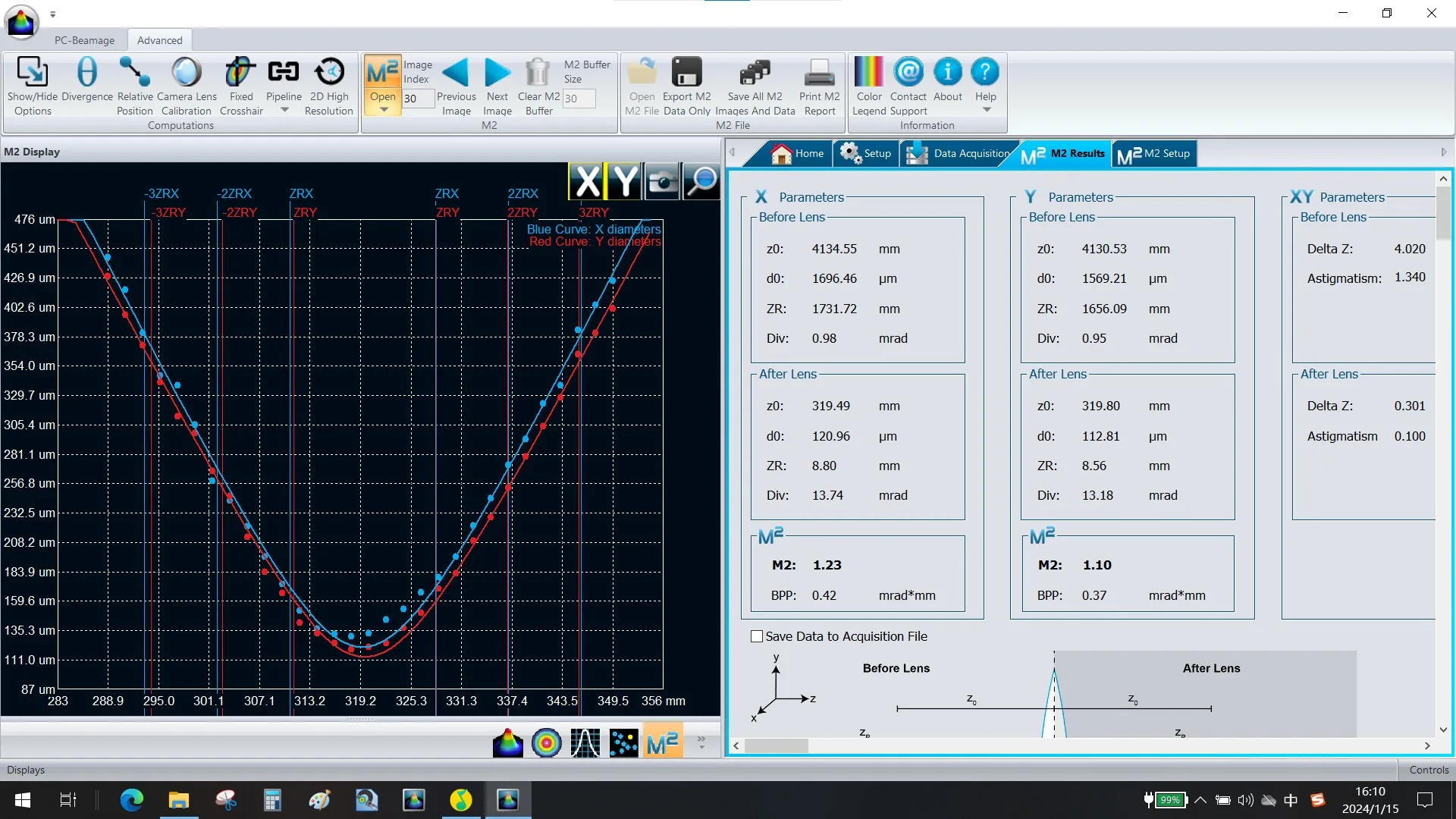

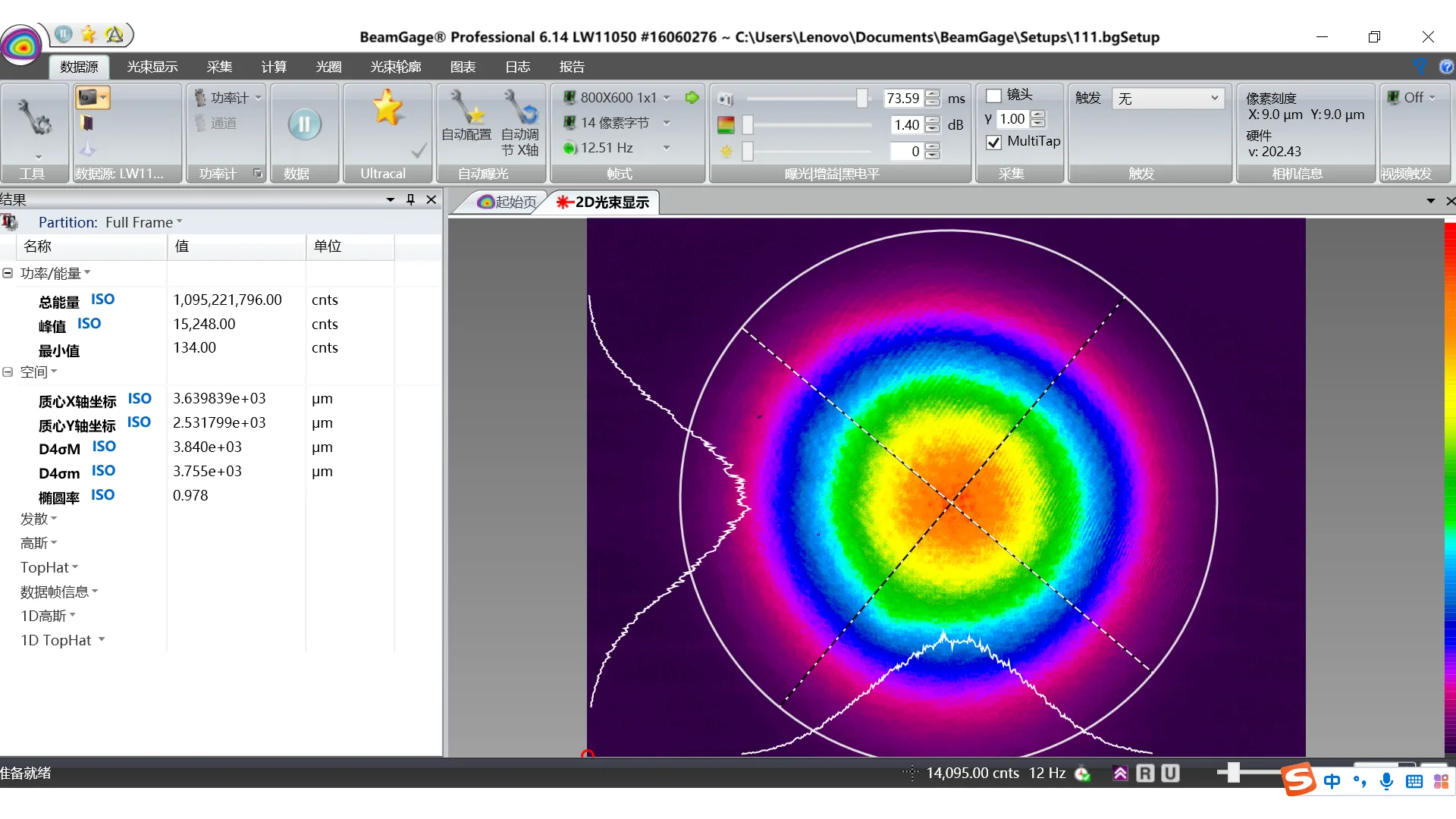

The laser offers a pulse duration of approximately 10–15 ps, providing ultrahigh temporal resolution and processing precision for time‑sensitive applications. Operating in the TEM₀₀ mode (M² ≤ 1.3) with beam circularity exceeding 90%, it ensures a uniform and stable beam profile, enhancing both processing quality and experimental reliability.

The series supports Burst‑mode operation to accommodate complex processing needs, and features a compact design with a water‑cooling system for stable performance even at high power. Flexible trigger modes and linear external power control facilitate seamless system integration and precise output regulation.

Overall, the Blaze series achieves an optimal balance between high power, high repetition rate, excellent beam quality, and long‑term stability — making it a highly competitive solution in the field of ultrafast laser processing.
