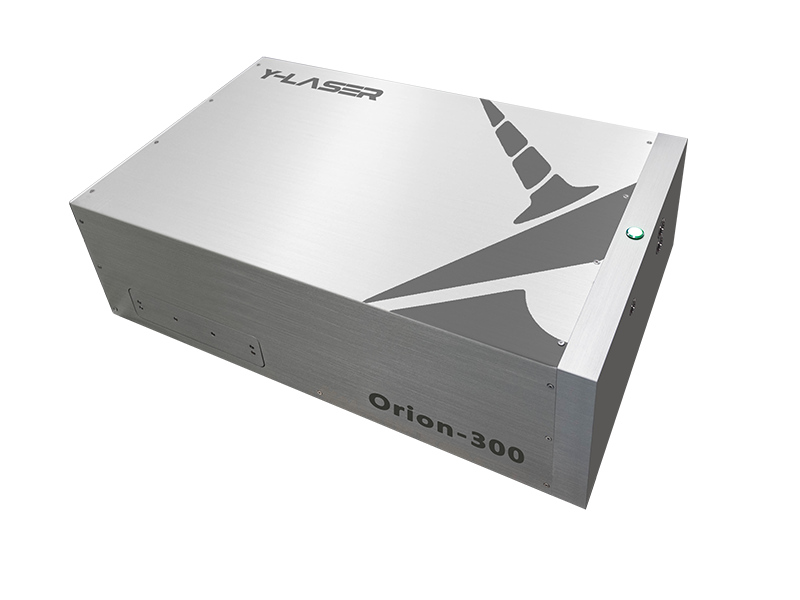

Orion 30

The Orion series of ultrafast femtosecond lasers delivers high-power, high-energy pulse output and is widely suitable for various applications in both scientific research and industry. The 1030 nm model offers two configuration options: an output power of 200 W at 100 kHz (single pulse energy of 2 mJ), and an output power of 300 W at 1 MHz (single pulse energy of 300 μJ), with pulse widths of less than 400 fs for both. The 515 nm model delivers 120 W at 1 MHz, with a single pulse energy of 120 μJ and a pulse width of less than 350 fs.

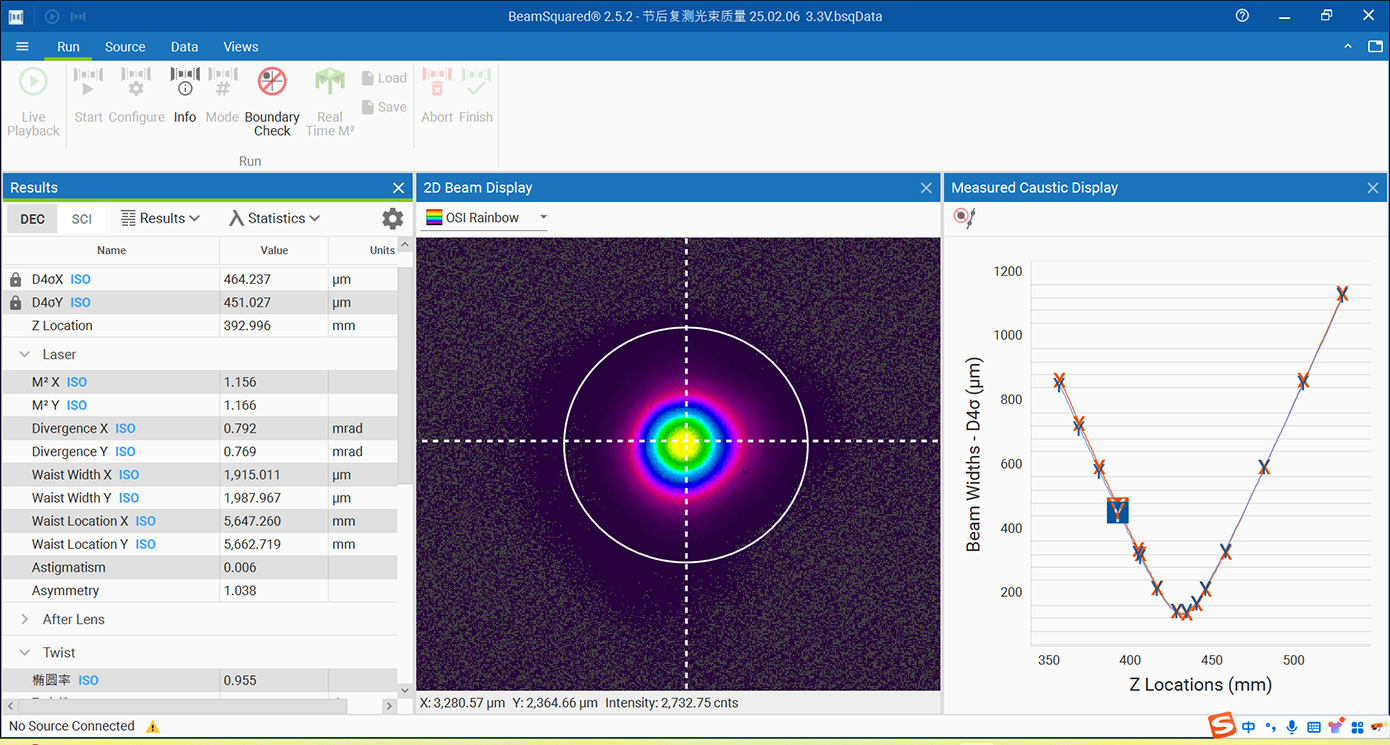

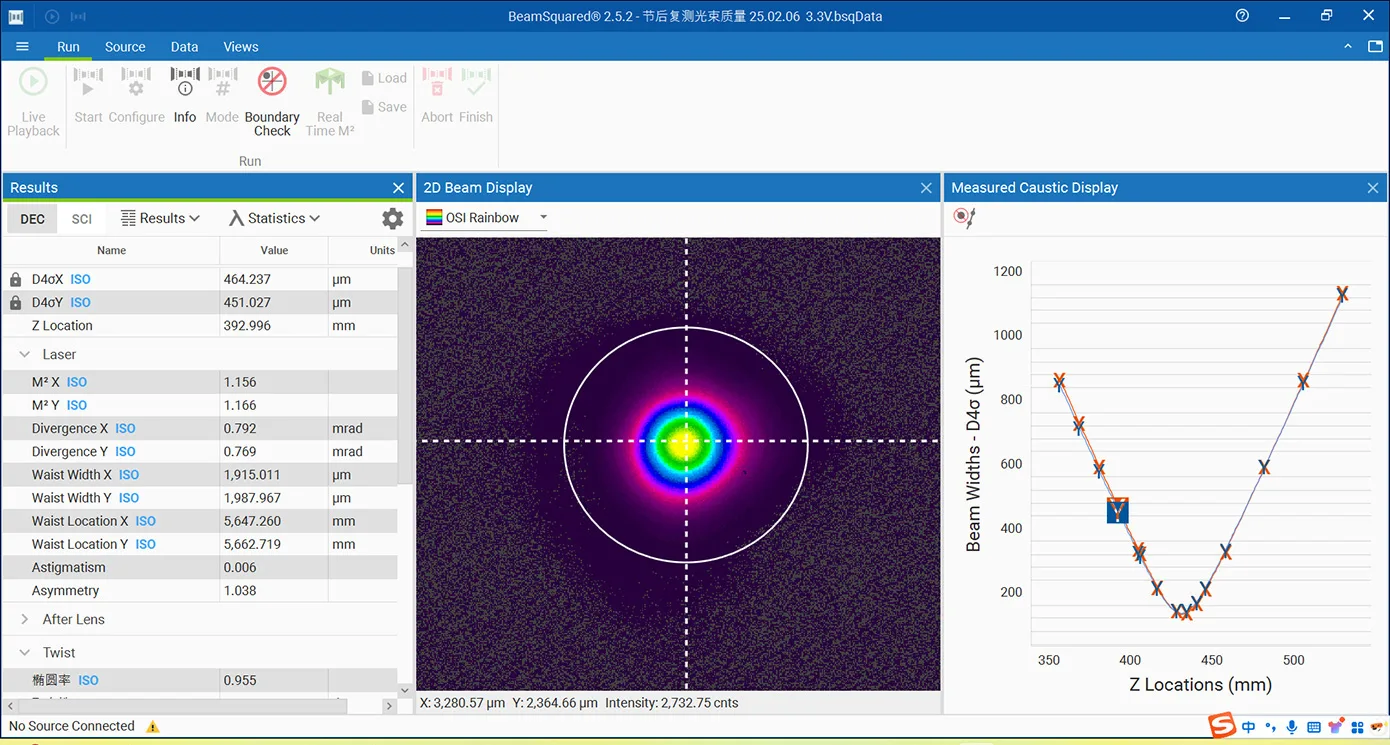

All models operate in high-quality TEM₀₀ mode (M² ≤ 1.3) with a beam roundness exceeding 90%, ensuring excellent beam quality. The beam diameter is approximately 3.0 mm (2.0 mm for the 515 nm model), further enhancing output stability and precision. The laser supports burst mode with 1 to 10 pulses per burst, making it easy to meet various experimental requirements.

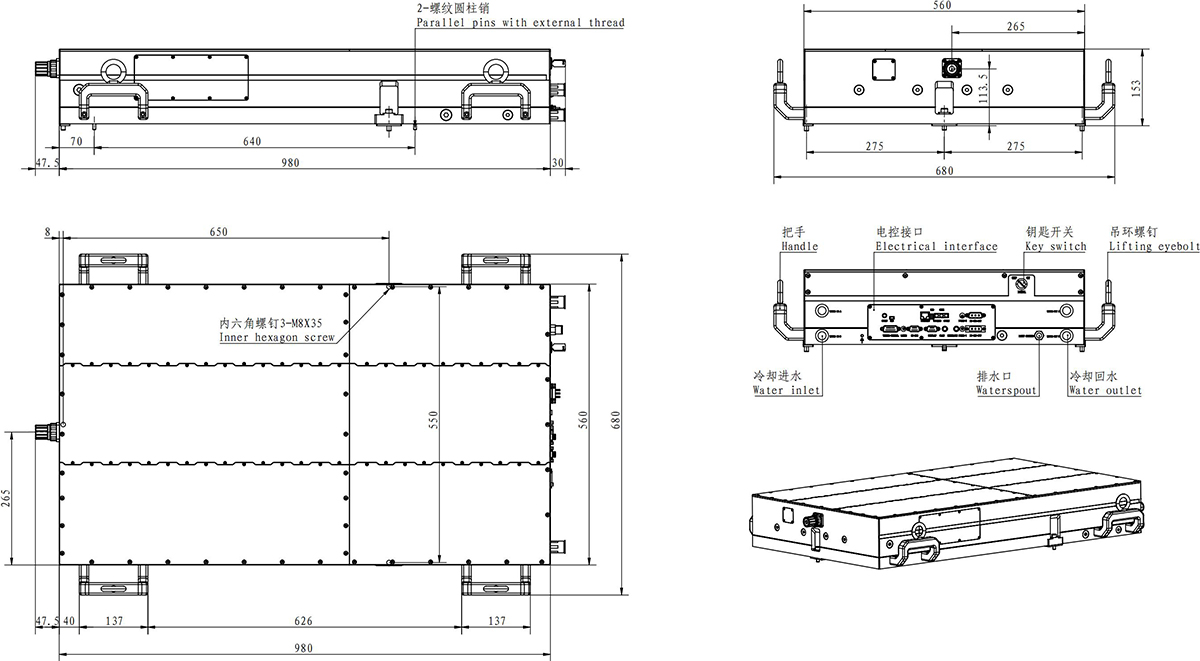

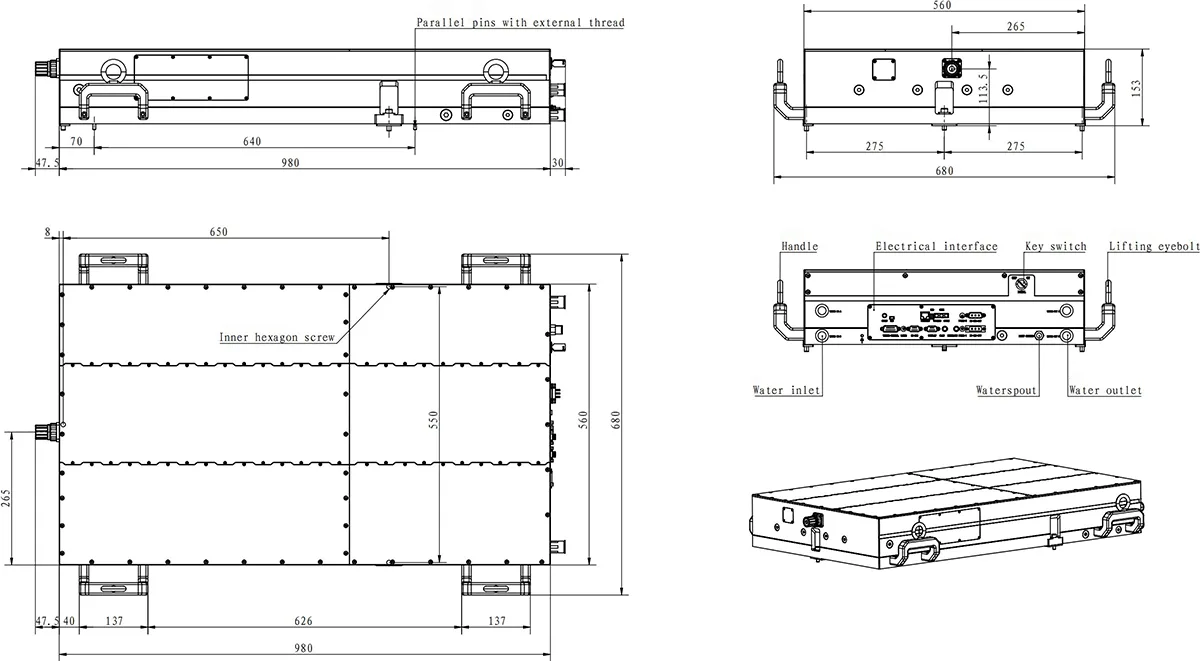

The Orion laser features a compact design with dimensions of 980 × 560 × 153 mm³ and utilizes a water circulation cooling system to effectively manage thermal load. The warm-up time is less than 15 minutes, and the laser is suitable for operation in environments with temperatures ranging from 22–30 °C and humidity below 60%.

The laser supports PSO/POD/Gate and TTL trigger modes, as well as 0–5 V linear external power control, enabling high-precision adjustment and seamless integration with various systems. With its high power, excellent stability, and outstanding beam quality, the Orion series is a high-performance choice in the field of ultrafast lasers.
